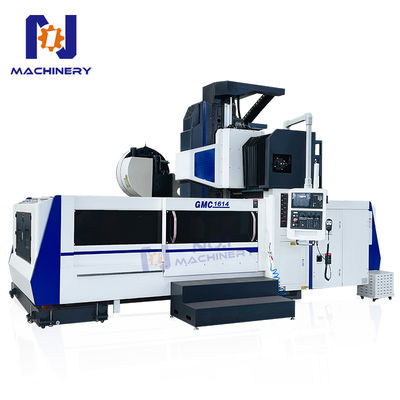

GMC1614 Gantry Cnc Milling Machine Multifunctional Vertical BT50 Spindle Machining Center
| MOQ: | 1 set |
| Price: | 60000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 45 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 100 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
GMC1614
Document
Work Table Size (width × Length) (mm):
1200X1700
X/Y/Z Axis Stroke（mm）:
1600*1500*800
Width Of Gantry(mm):
1500
High Of Gantry(mm):
1030
Distance From Spindle End Face To Work Table (mm):
150-950
Spindle Specifications (Model/Installation Diameter):
BT50／φ190
Spindle Motor Recommended（kw）:
22
Product Description
GMC1614 Gantry Cnc Milling Machine Multifunctional Vertical BT50 Spindle Machining Center
Product Description:
Gantry machining center is a heavy-duty, high-rigidity CNC machine tool designed for large-scale, high-precision machining. It integrates milling, drilling, boring, tapping, and grinding functions, making it ideal for processing large molds, automotive molds, aerospace components, and heavy mechanical parts.
With stable structure, strong cutting capacity, and long-term accuracy retention, this series is widely used in mold manufacturing, automotive, aerospace, energy, shipbuilding, and machinery industries.
With stable structure, strong cutting capacity, and long-term accuracy retention, this series is widely used in mold manufacturing, automotive, aerospace, energy, shipbuilding, and machinery industries.
Standard Configuration:
1.syntec 22ma control system
2.Bt40 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -Disc- atc
6.Electrical cabinet cold air exchanger
Product Specification:
Details Display:
