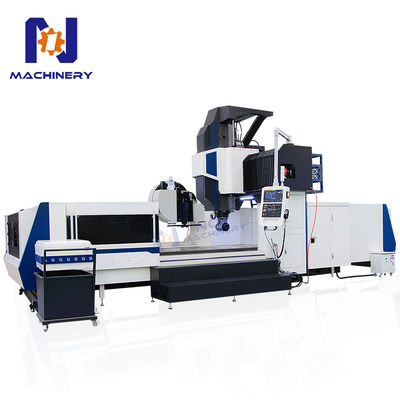

GMC3018 Gantry Machining Center High Precision CNC Milling Machine 4 Axis 5 Axis
| MOQ: | 1 set |
| Price: | 80000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 45 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 100 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
GMC3018
Document
Work Table Size (width × Length) (mm):
1600X3200
X/Y/Z Axis Stroke（mm）:
3000*1900*1000
Width Of Gantry(mm):
1900
High Of Gantry(mm):
1300
Distance From Spindle End Face To Work Table (mm):
200-1000
Spindle Specifications (Model/Installation Diameter):
BT50-Φ190
T-shaped Groove For Table(mm):
9-22X180
Highlight:
GMC3018 Gantry Machining Center
,4 Axis Gantry Machining Center
,5 Axis high precision cnc milling machine
Product Description
Gantry Machining Center GMC3018 High-precision Cnc Milling Machine 4 Axis 5 Axis
Product Description:
The GMC3018 is a high-precision, high-efficiency gantry machining center featuring premium castings and precision roller guides for outstanding rigidity. Equipped with high-torque spindle and intelligent CNC system supporting 4-axis 5-axis machining, it's ideal for precision processing of large complex components in aerospace and mold manufacturing industries.
Standard Configuration:
1.syntec 22ma control system
2.Bt50 Taiwan 6000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -Disc- atc
6.Electrical cabinet cold air exchanger
Detailed Configuration:
1.spindle unite:kenturn/OKADA/volis
2.electricals:Schneider
3.tool cylinder:tenio
4.lubrication pump:HERG
5.bearing:SKF/NACHI
6.coupling:R+W
Product Specification:
Details Display:
