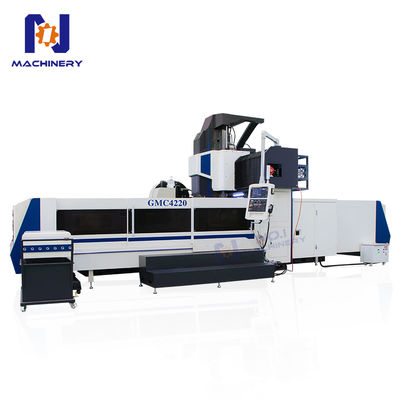

GMC4220 CNC Gantry Machining Center 4 Meter For Metal 1800x4000mm
| MOQ: | 1 set |
| Price: | 95000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 45 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 100 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
GMC4220
Document
Work Table Size (width × Length) (mm):
1800x4000
X/Y/Z Axis Stroke（mm）:
4200*2000*1000
Width Of Gantry(mm):
2000
Distance From Spindle End Face To Work Table (mm):
200-1000
Spindle Specifications (Model/Installation Diameter):
BT50-Φ190
T-shaped Groove For Table(mm):
9-22X180
Worktable Load Bearing:
6T
Highlight:
GMC4220 cnc gantry machining center
,4 Meter cnc gantry machining center
,1800x4000mm cnc gantry
Product Description
GMC4220 China Cnc Gantry Milling Machine 4 Meter Gantry Machining Center for Metal
Product Description:
The GMC4220 is a high-rigidity, high-precision gantry machining center featuring premium cast iron bed and precision roller guides for exceptional stability and durability. Equipped with high-power motorized spindle and advanced CNC system, it enables high-speed precision machining, making it ideal for manufacturing large complex components in energy equipment and rail transportation industries.
Standard Configuration:
Syntec 22MA CNC control system
BT50 Taiwan 6000 RPM spindle
Taiwan HIWIN precision ball screws
Taiwan HIWIN 3-axis roller linear guides
Taiwan OKADA 24-disc ATC
Electrical cabinet air cooling exchanger
Detailed Configuration:
spindle unite:kenturn/OKADA/volis
electricals:Schneider
tool magazine:OKADA/AIMACH
tool cylinder:tenio
lubrication pump:HERG
bearing:SKF/NACHI
coupling:R+W
Product Specification:
Details Display:
