GMC5025 Square Ram Gantry Machining Center Heavy Duty 3 Axis CNC Milling Machine

Products

Planing Machine

Mr. Levin Jiang

admin@sdskmc.com

86-0632-5157668

+8618906325870

Chat Now

GMC5025 Square Ram Gantry Machining Center Heavy Duty 3 Axis CNC Milling Machine

MOQ:	1 set
Price:	135000USD
Standard Packaging:	Export standard wooden case or as customers' requirement
Delivery Period:	45 days after getting the deposit.
Payment Method:	T/T
Supply Capacity:	100 sets/month

Details Information

Product Description

Detail Information

Place of Origin

Shandong, China

Brand Name

Zaozhuang NO.1

Certification

CE,ISO

Model Number

GMC5025

Document

Work Table Size (width × Length) (mm):

2300X5000

X/Y/Z Axis Stroke（mm）:

5000*2700*1000

Width Of Gantry(mm):

High Of Gantry(mm):

Spindle Specifications (Model/Installation Diameter):

BT50-Φ200

T-shaped Groove For Table(mm):

11-28X200

Worktable Load Bearing:

Highlight:

GMC5025 Gantry Machining Center

Heavy Duty Gantry Machining Center

BT50 3 axis cnc milling machine

Product Description

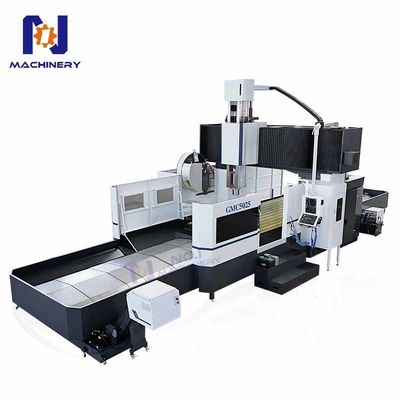

GMC5025 Square Ram Gantry Machining Center Heavy Duty 3 Axis Cnc Milling Machine

Product Description:

The GMC5025 is a large-travel gantry machining center featuring premium cast iron construction and precision roller guides for stability during heavy cutting. With 6000rpm high-power spindle and 24-tool ATC, it supports 5-axis machining, making it ideal for efficient processing of large complex components in aerospace and shipbuilding industries.

Standard Configuration:

Syntec 22MA CNC control system
BT50 Taiwan 6000 RPM spindle
Taiwan HIWIN precision ball screws
Taiwan HIWIN 3-axis roller linear guides
Taiwan OKADA 24-disc ATC
Electrical cabinet air cooling exchanger

Detailed Configuration:

Spindle unite:kenturn/OKADA/volis
Electricals:Schneider
Tool magazine:OKADA/AIMACH
Tool cylinder:tenio
Lubrication pump:HERG
Bearing:SKF/NACHI
Coupling:R+W
Linear rails:HIWIN/PMI
Lubrication pump:HERG
Guide rail protection:haidong

Product Specification:


			rameters

			GMC5025

			GMC6025

			Work table size (width × length) (mm)

			2300×5000

			2300×6000

			Stroke in the moving direction of the table (X-axis mm)

			5000

			6000

			Stroke in the moving direction of the spindle carriage (Y-axis mm)

			2700(side stroke 3050)

			2700(side stroke 3050)

			Stroke in the up and down movement direction of the spindle (Z axis mm)

			1000

			1000

			Gantry width (mm)

			2700

			2700

			Gantry is too high (mm)

			1400

			1400

			Distance from spindle end face to work table (mm)

			340-1340

			330-1330

			Table T-slot (number - size x spacing)

			11-28×200

			11-28×200

			Spindle Specifications (Model/Installation Diameter)

			BT50/Φ210

			BT50/Φ210

			Spindle transmission mode

			belt

			Speed 6000r/min

			Speed 6000r/min

			the transmission ratio is 1.5:1;(optional 1.5:1)

			the transmission ratio is 1.5:1;(optional 1.5:1)

			ZF deceleration + belt (optional)

			The speed is 6000r/min and the transmission ratio is 4:1;

			The speed is 6000r/min and the transmission ratio is 4:1;

			Gear Head (Weimars)

			speed 6000r/min, Transmission ratio 4.4:1

			speed 6000r/min, Transmission ratio 4.4:1

			Rapid traverse feed rate (m/min)

			10

			10

			Cutting feed rate (m/min)

			6

			6

			X, Y, Z axis ball screw specifications/pitch

			X:8020, Y:6316, Z:5010

			X:8020, Y:6316, Z:5010

			X, Y, Z axis guide rail specifications / number of sliders

			X axis: roller guide 55/14;

			X axis: roller guide 55/14;

			Y axis: roller guide 55/4;

			Y axis: roller guide 55/4;

			Z axis: rectangular slide

			Z axis: rectangular slide

			X, Y, Z axis servo motor transmission mode and transmission ratio

			X-axis planetary gear transmission 4:1 X-axis planetary gear transmission 3:1 Z-axis direct drive 1:1 (Optional X-axis belt drive

			2.5:1; Y-axis direct drive 1:1; X-axis direct drive 1:1)

			X-axis planetary gear transmission 4:1 X-axis planetary gear transmission 3:1 Z-axis direct drive 1:1 (Optional X-axis belt drive

			2.5:1; Y-axis direct drive 1:1; X-axis direct drive 1:1)

			Spindle motor selection recommendation

			22kW wide area motor

			22kW wide area motor

			X, Y, Z three-phase servo motor recommendation

			≥ X:50N m; Y:40N m; Z:30N m (brake)

			≥ X:50N m; Y:40N m; Z:30N m (brake)

			Optical machine dimensions

			10555x5130x4300

			12420x5130x4300

			(length × width × height) (mm)

			Workbench load (t)

			15

			18

			Light machine weight about (t)

			44

			51

Details Display:

GMC5025 Square Ram Gantry Machining Center Heavy Duty 3 Axis CNC Milling Machine 0

GMC5025 Square Ram Gantry Machining Center Heavy Duty 3 Axis CNC Milling Machine 1

GMC5025 Square Ram Gantry Machining Center Heavy Duty 3 Axis CNC Milling Machine 2
