Cnc Gantry Milling and Boring Machine GMC2516 Large Cnc Gantry Milling Machine
| MOQ: | 1 set |
| Price: | 70000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 45 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 100 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
GMC2516
Document
Work Table Size (width × Length) (mm):
1400x2600
X/Y/Z Axis Stroke（mm）:
2500*1650*800
Width Of Gantry(mm):
1660
High Of Gantry(mm):
1100
Distance From Spindle End Face To Work Table (mm):
250-1050
Spindle Specifications (Model/Installation Diameter):
BT50-Φ190
Spindle Motor Recommended（kw）:
22
T-shaped Groove For Table(mm):
7-22X170
Tool Magazine:
Arm24
Product Description

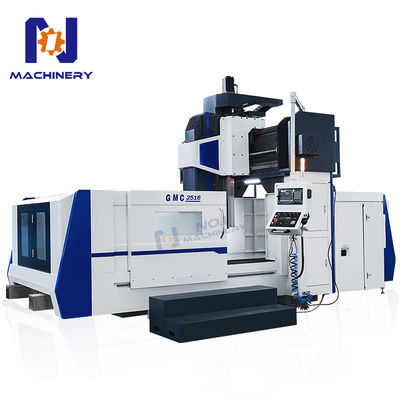

Cnc Gantry Milling and Boring Machine GMC2516 Large Cnc Gantry Milling Machine
Product Description:
The GMC2516 is a high-performance gantry machining center with a stable, rigid bridge-type structure and high-precision linear guides, ensuring excellent machining accuracy and long-term stability.Equipped with a high-power, high-speed spindle and an intelligent CNC system, it performs exceptionally well in the precision machining of large and complex workpieces.It is the ideal equipment for mold making, automotive production, and heavy machinery manufacturing.
Standard Configuration:
1.syntec 22ma control system
2.Bt50 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -Disc- atc
6.Electrical cabinet cold air exchanger
Detailed Configuration:
1.spindle unite:kenturn/OKADA/volis
2.electricals:Schneider
3.tool cylinder:tenio
4.lubrication pump:HERG
5.bearing:SKF/NACHI
Product Specification:
Details Display:
