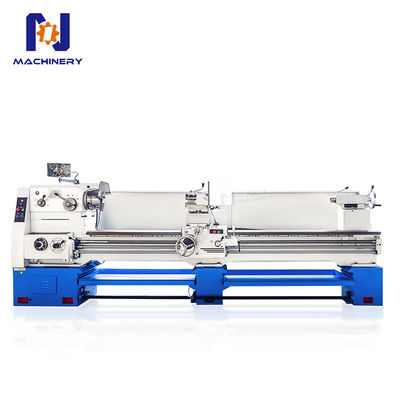

China Best Sell CA6180 Precision Manual Lathe New Universal Metal Horizontal Lathe
| MOQ: | 1 set |
| Price: | 9000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
China Best Sell CA6180 Precision Manual Lathe New Universal Metal Horizontal Lathe
This series of lathes is suitable for turning internal and external cylindrical surfaces,conical surfaces,and their surfaces of revolution.It can machine various metric,imperial,module,and diametral pitch threads,and perform drilling and oil groove cutting.The bed is wider than that of a typical lathe,providing higher rigidity.The guideways are high-frequency hardened for durability and wear resistance.The machine tool is easy and centralized to operate,with a rapid traverse mechanism on the slide.It employs a single-handle intuitive operation,offering excellent user-friendliness.The machine tool's structural and transmission rigidity are higher than that of a typical lathe,resulting in high power utilization and suitability for heavy-duty cutting.
Standard Configuration:
1.Width of bed:400mm
2.Section of turning tool:25X25mm
3.Hole through spindle:52mm
4.Main motor power:7.5 kw
Optional Configuration:
1.Center rest,
2.follow rest
3.Spindle bore 80/105mm
4.Safety lock
5.Foot brake
6.3-axis Digital display
7.Chuck + tool post protection
Specification:
| Max. Swing over bed | mm | 800 |
| Max. Swing over carriage | mm | 540 |
| Max. Swing in gap | mm | 1020 |
| Effective gap length | mm | 210 |
| Max. length of work piece | mm | 1000/1500/2000/3000mm |
| Width of bed | mm | 400 |
| Section of turning tool | mm | 25*25 |
| Spindle speeds | 10-1400rpm(24steps) | |
| Hole through spindle | mm | 50/80/105 |
| Spindle taper | -- | MT6 |
| No. of feeds | -- | 64(kinds)(for each) |
| Range of metric threads(kinds) | -- | (1-192mm) (44 kinds) |
| Range of inch threads(kinds) | -- | (2-24tpi) (21kinds) |
| Range of module threads(kinds) | -- | 0.25-48 (module 39 kinds) |
| Max tailstock spindle travel | mm | 150 |
| Tailstock spindle diameter | mm | 75 |
| Taper of taistock spindle center hole | MT5 | |
| Main motor | kw | 7.5 |
| Overall dimensions | mm | 4850*1140*1750 |
| N.W./G.W. | kg | 4000 |
Details Display:
