High Precision Milling Machine XK7130 Vertical Milling Machine Manufacturing China
| MOQ: | 1 set |
| Price: | 20000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
XK7130
Document
Table Size:
800×300mm
X–axis Travel:
600mm
Y–axis Travel:
360mm
Z–axis Travel:
450mm
Spindle Nose To Table:
120-520mm
Spindle Center To Column Surface Distance:
380mm
Cutting Feed Rate:
1-8000mm/min
Maximum Table Load:
200kg
Main Motor Power:
5.5kw
Product Description

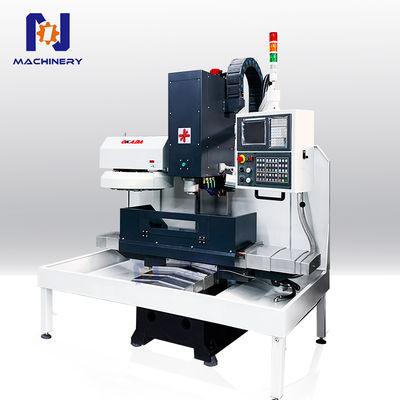

High Precision Milling Machine XK7130 Vertical Milling Machine Manufacturing China
Engineered for precision and durability, the XK7130 ensures long-term stability with a robust frame of wear-resistant resin sand castings, stress-relieved through two annealing and vibration aging processes. Its reliability is further enhanced by hardened X, Y, and Z axis guideways and a three-axis drive system that utilizes high-precision ball screws and specialized bearings to guarantee superior positioning and repeatability. Additionally, sealed protective covers on the guideways and lead screws contribute to a prolonged machine service life.
Standard Configuration:
1. Guangtai 130ime system
2.bt40 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.HT250 high quality castings
5.Electrical cabinet cold air exchanger
6.Taiwan hiwin 3 axis roller linear rails
Product Specification:
