XK6240 CNC Milling Machine Universal Swivel Head Milling Machine For Metal
| MOQ: | 1 set |
| Price: | 20000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 100 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
XK6240
Document
Table Size:
1700x400mm
X/Y/Z–axis Travel:
900x330x380mm
Maximum Load:
500kg
Maximum Table Rotation Angle:
±45°(optional）
Cutting Feed Speed:
6000mm/min
Spindle Speed Range:
30-1500r/mm
Spindle Motor Power:
11kw
Highlight:
XK6240 CNC Milling Machine
,Metal CNC Milling Machine
,XK6240 universal swivel head milling machine
Product Description

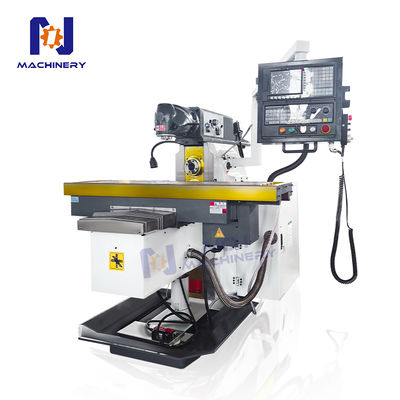

XK6240 Cnc Milling Machine Universal Swivel Head Milling Machine for Metal
Product Description:
1.Adopt high quality resin sand wear-resistant castings, strong and tough bones, super large column, wide and low seat, honeycomb structure. After two annealing treatment and vibration aging, remove stress to ensure long-term deformation.
2.X,Y,Z shaft is hard rail quenching treatment to increase the reliable performance of machine tools.
3. three-axis drive adopts high precision, high rigidity ball wire rod pair, high precision special bearing, which ensures the positioning accuracy and repeated positioning accuracy.
4. adopts the protective cover of the guide rail of the sealed machine tool, which effectively protects the guide rail and the lead screw, and prolongs its service life.
2.X,Y,Z shaft is hard rail quenching treatment to increase the reliable performance of machine tools.
3. three-axis drive adopts high precision, high rigidity ball wire rod pair, high precision special bearing, which ensures the positioning accuracy and repeated positioning accuracy.
4. adopts the protective cover of the guide rail of the sealed machine tool, which effectively protects the guide rail and the lead screw, and prolongs its service life.
Standard Configuration:
1. gsk 980 mdi
2.Three axis CNC
3.Manual transmission of spindle
4.Electronicoil pump
5.Three-axis hard rail
Optional Configuration:
1. System :KND
2.Pneumatic broach
3.CNC dividing head
4.Top Tailstock
5.The table rotates
Product Specification:
Details Display:
