High Precision Fresadora CNC Milling Machine XK5032 Vertical Metal Working
| MOQ: | 1 set |
| Price: | 18000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
XK5032
Document
Table Size:
1500x320mm
X–axis Travel:
900mm
Y–axis Travel:
310mm
Z–axis Travel:
350mm
Spindle Taper:
ISO:50/7:24
Spindle Nose To Table:
30-380mm
T-groove:
3-14-70
Highlight:
High Precision cnc milling machine
,Fresadora cnc milling machine
,XK5032 cnc metal milling machine
Product Description

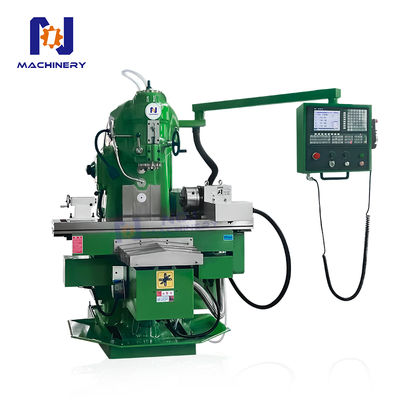

High Precision Fresadora Cnc XK5032 Vertical Metal Working Cnc Milling Machine
The XK5032 is a high-performance vertical CNC milling machine featuring a sturdy bed structure and precision guideways to ensure stable and precise machining. Equipped with a CNC system and supporting three-axis linkage, it is suitable for efficient milling, drilling, and tapping of complex parts.
Standard Configuration:
1. Guangtai 130 system
2.Three axis CNC
3.Manual transmission of spindle
4.Electronicoil pump
5.Three-axis hard rail
Optional Configuration:
1. System :GSK,KND
2.Pneumatic broach
3.CNC dividing head
4.Top Tailstock
5.Fully protected sheet metal
Product Specification:
|
PARAMETER ITEM
|
UNIT
|
XK5032
|
XK5040
|
|
Size of worktable
|
mm
|
1500x320
|
1700x400
|
|
Tabe travel
|
mm
|
900x310x350
|
880x300x365
|
|
T-groove
|
mm
|
3-14-70
|
3-18-90
|
|
Spindle Taper
|
-
|
ISO:50/7:24
|
ISO:50/7:24
|
|
Maximum rotation angle of end mill head
|
.
|
±45°
|
±45°
|
|
Distance between spindle end face and table top
|
mm
|
30-380
|
45-410
|
|
Bed Vertical Guide to the spindle center line distance
|
mm
|
350
|
450
|
|
Spindle speed range (series)
|
rpm
|
30-1500/18
|
30-1500/18
|
|
Fast moving speed(x/y/z)
|
mm/min
|
6000/6000/3000
|
3000/3000/1500
|
|
Positioning accuracy
|
mm
|
0.025/300
|
0.05/300
|
|
Repeat positioning accuracy
|
mm
|
0.015/300
|
0.025/300
|
|
Main Drive motor power
|
kw
|
7.5
|
11
|
|
Cooling pump motor power
|
kw
|
0.125
|
0.125
|
|
External dimensions
|
mm
|
2272x1825x2094
|
2556x2160x2400
|
|
Weight of machine tool
|
kg
|
3250
|
4320
|
Details Display:
