XK7136 Metal CNC Vertical Milling Center 4 Axis Fresadora CNC With CE
| MOQ: | 1 set |
| Price: | 15000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
XK7136
Document
Table Size:
1250x360mm
Max. Table Load:
400kg
X–axis Travel:
900mm
Y–axis Travel:
360mm
Z–axis Travel:
500mm
Spindle Nose To Table:
100-600mm
Spindle Taper:
BT40
Highlight:
XK7136 cnc vertical milling center
,Metal cnc vertical milling center
,4 Axis cnc vertical machining center
Product Description

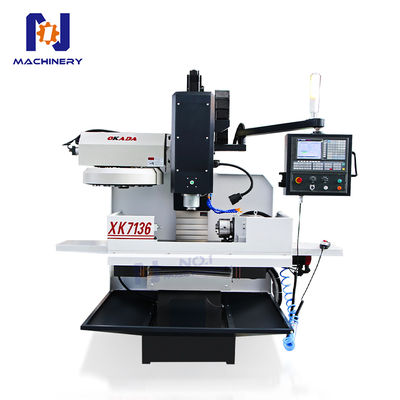

XK7136 Metal Cnc Vertical Milling Machine 4 Axis Fresadora Cnc with CE
Product Description:
1. XK7136 uses high-quality resin sand castings for wear resistance, featuring a sturdy frame, oversized column, wide low base, and honeycomb structure.
2.X/Y/Z axes feature hardened guide rails for enhanced machine reliability.
3. Three-axis drive uses high-precision, rigid ball screws and special bearings to ensure positioning and repeatability.
4. Sealed guards protect guide rails and lead screws, extending their service life.
2.X/Y/Z axes feature hardened guide rails for enhanced machine reliability.
3. Three-axis drive uses high-precision, rigid ball screws and special bearings to ensure positioning and repeatability.
4. Sealed guards protect guide rails and lead screws, extending their service life.
Standard Configuration:
1. GSK 980 mdi
2.Three axis CNC
3.Spindle speed 8000rpm
Optional Configuration:
1.System :Siemens, FANUC, Mitsubishi, KND
2.Taiwan OKADA 16 -Disc-atc
3.CNC dividing head
4.Top Tailstock
5.Full protection
