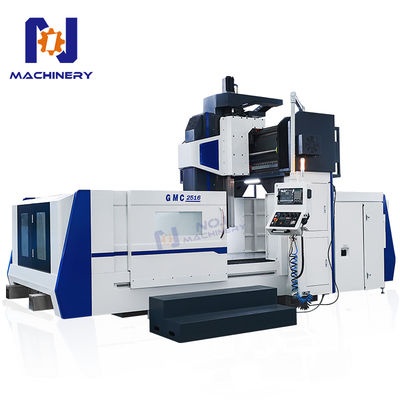

GMC2516 Gantry CNC Milling Machine BT50 Taiwan Spindle CNC Machining Centre

MOQ:	1 set
Price:	70000USD
Standard Packaging:	Export standard wooden case or as customers' requirement
Delivery Period:	45 days after getting the deposit.
Payment Method:	T/T
Supply Capacity:	100 sets/month

Details Information

Product Description

Detail Information

Place of Origin

Shandong, China

Brand Name

Zaozhuang NO.1

Certification

CE,ISO

Model Number

GMC2516

Document

Work Table Size (width × Length) (mm):

1400x2600

X/Y/Z Axis Stroke（mm）:

2500*1650*800

Width Of Gantry(mm):

High Of Gantry(mm):

Distance From Spindle End Face To Work Table (mm):

250-1050

Spindle Specifications (Model/Installation Diameter):

BT50-Φ190

Spindle Motor Recommended（kw）:

T-shaped Groove For Table(mm):

7-22X170

Tool Magazine:

Arm24

Highlight:

GMC2516 gantry cnc milling machine

BT50 gantry cnc milling machine

Taiwan Spindle cnc machining centre

Product Description

GMC2516 Gantry Cnc Milling Machine BT50 Taiwan Spindle Cnc Machining Centre

Product Description:

The GMC2516 is a high-performance gantry machining center featuring rigid bridge-type construction and precision linear guides for superior accuracy. With high-power spindle and smart CNC system, it excels in precision machining of large complex parts, ideal for mold, automotive and heavy machinery manufacturing.

Standard Configuration:

syntec 22ma control  system
Bt50 Taiwan 8000 RPM spindle
Taiwan  hiwin screw
Taiwan hiwin 3 axis roller linear rails
Taiwan OKADA 24 -Disc- atc
Electrical cabinet cold  air exchanger

Detailed Configuration:

spindle unite:kenturn/OKADA/volis
electricals:Schneider
tool cylinder:tenio
lubrication pump:HERG
bearing:SKF/NACHI

Product Specification:


			Item Model

			GMC2016

			GMC2516

			Work table size (width × length) (mm)

			1300*2000

			1300*2000

			Stroke in the moving direction of the table (X-axis mm)

			2000

			2500

			Stroke in the moving direction of the spindle carriage (Y-axis mm)

			1650(tool change stroke 1850)

			1650(tool change stroke 1850)

			Stroke in the up and down movement direction of the spindle (Z axis mm)

			800

			800

			Gantry width (mm)

			1660

			1660

			Gantry is too high (mm)

			1100

			1100

			Distance from spindle end face to work table (mm)

			250-1050

			250-1050

			Table T-slot (number - size x spacing)

			7-22×170

			7-22×170

			Spindle Specifications (Model/Installation Diameter)

			BT50/Φ190

			BT50/Φ190

			Spindle transmission mode

			belt

			Speed 6000r/min

			Speed 6000r/min

			The transmission ratio of the pulley is standard 1.5:1; (optional 1:1)

			The transmission ratio of the pulley is standard 1.5:1; (optional 1:1)

			ZF deceleration + belt (optional)

			The speed is 6000r/min and the transmission ratio is 4:1;

			The speed is 6000r/min and the transmission ratio is 4:1;

			Gear Head (Weimars)

			Maximum speed 6000r/min Transmission ratio 4.4:1

			Maximum speed 6000r/min Transmission ratio 4.4:1

			Rapid traverse feed rate (m/min)

			15

			15

			Cutting feed rate (m/min)

			10

			10

			X, Y, Z axis ball screw specifications/pitch

			X: 6310, Y: 5010, Z: 5010

			X: 6312, Y: 5010, Z: 5010

			X, Y, Z axis guide rail specifications / number of sliders

			X axis: roller guide 55/6;

			X axis: roller guide 55/8;

			Y axis: roller guide 55/4;

			Y axis: roller guide 55/4;

			Z axis: rectangular slide

			Z axis: rectangular slide

			X, Y, Z axis servo motor transmission mode and transmission ratio

			X, Y, Z axes are directly connected

			X, Y, Z axes are directly connected

			Spindle motor selection recommendation

			22kW wide area motor

			22kW wide area motor

			X, Y, Z three-phase servo motor recommendation

			≥ X: 38N m; Y: 30N m; Z: 30N m (brake)

			≥ X: 38N m; Y: 30N m; Z: 30N m (brake)

			Optical machine dimensions

			5590*3630*3830

			6590*3630*3830

			(length × width × height) (mm)

			Workbench load (t)

			4

			5

			Light machine weight about (t)

			16

			18

Details Display:

GMC2516 Gantry CNC Milling Machine BT50 Taiwan Spindle CNC Machining Centre 0

GMC2516 Gantry CNC Milling Machine BT50 Taiwan Spindle CNC Machining Centre 1

GMC2516 Gantry CNC Milling Machine BT50 Taiwan Spindle CNC Machining Centre 2

GMC2516 Gantry CNC Milling Machine BT50 Taiwan Spindle CNC Machining Centre 3
