GMC2014 Fanuc 3 Axis CNC Gantry Machining Milling Center CNC Gantry Milling Machine
| MOQ: | 1 set |
| Price: | 60000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 45 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 100 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
GMC2014
Document
Work Table Size (width × Length) (mm):
1200X2100
X/Y/Z Axis Stroke（mm）:
2000*1500*800
Width Of Gantry(mm):
1500
High Of Gantry(mm):
1030
Distance From Spindle End Face To Work Table (mm):
150-950
Spindle Specifications (Model/Installation Diameter):
BT50／φ190
Spindle Motor Recommended（kw）:
22
Highlight:
GMC2014 gantry machining
,3 Axis gantry machining
,Fanuc cnc gantry milling machine
Product Description

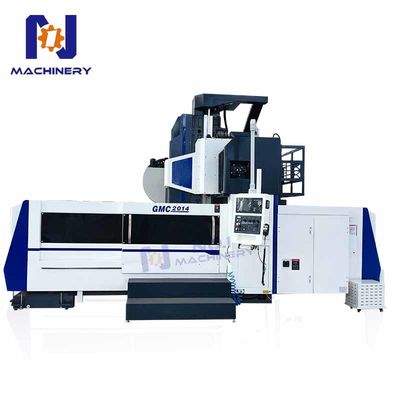

GMC2014 Fanuc 3 Axis CNC Gantry Milling Machining Center Cnc Gantry Milling Machine
Product Description:
The GMC2014 is a high-performance gantry machining center featuring a rigid structure and precision guideway system, ensuring exceptional stability and accuracy. Equipped with an advanced CNC system and high-speed spindle, it is ideal for efficient machining of medium-to-large complex parts, widely used in mold manufacturing, aerospace, and energy equipment industries. Its modular design allows customizable configurations to meet diverse production requirements.
Standard Configuration:
1.syntec 22ma control system
2.Bt40 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -Disc- atc
6.Electrical cabinet cold air exchanger
Product Specification:
Details Display:
