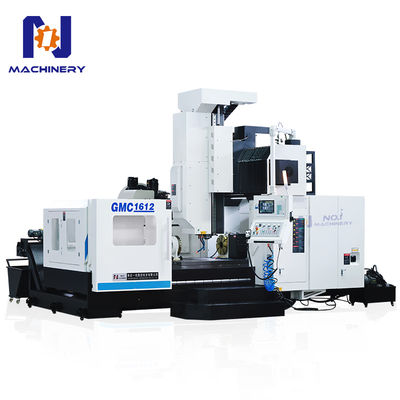

GMC1612 Fixed Column Gantry Machining Center Heavy Duty CNC Gantry Milling Machine
| MOQ: | 1 set |
| Price: | 47000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 45 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 100 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
GMC1612
Document
Work Table Size (width × Length) (mm):
1700x1050
X/Y/Z Axis Stroke（mm）:
1600*1300*700
Width Of Gantry(mm):
1250
High Of Gantry(mm):
1060
Distance From Spindle End Face To Work Table (mm):
100-900
Spindle Specifications (Model/Installation Diameter):
BT40-Φ155
The Capacity Of Tool Storage:
24
Highlight:
GMC1612 Gantry Machining Center
,Fixed Column Gantry Machining Center
,Heavy Duty gantry lathe
Product Description
GMC1612 Heavy Duty Cnc Gantry Milling Machine Fixed-colum Gantry Machining Center
Product Description:
This gantry machining center is used in CNC milling, boring, drilling, tapping, processing of steel, cast steel, cast iron etc.. And also be used for small batch spare parts, processing and manufacturing, of complex, high precision parts processing more show its superiority, also can compose the automatic production line for mass production, to ensure the efficient production.
Standard Configuration:
1.syntec 22ma control system
2.Bt40 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -Disc- atc
6.Electrical cabinet cold air exchanger
Product Specification:
