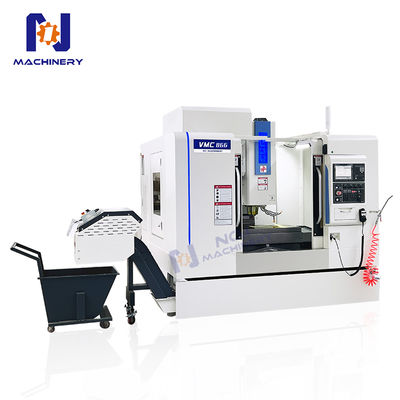

VMC866 3 Axis Vertical Machining Center CNC Milling Machine
| MOQ: | 1 set |
| Price: | 21000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
VMC866
Document
Size Of Worktable (mm):
1000*600
X/Y/Z Axis Stroke（mm）:
800*600*600
Maximum Load On Table（kg）:
550
Spindle Speed（rpm）:
8000
Machine Weight(kg):
6000
Overall Size(mm):
2800*2400*2700
Highlight:
VMC866 3 axis vertical machining center
,8000rpm 3 axis vertical machining center
,3 axis vertical cnc
Product Description
VMC866 Cnc Milling Machine 3 Axis Vertical Machining Center with Low Price
Product Description:
The VMC866 is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Product Features:
1. Yunnan HT300 resin sand casting, tempering elimination internal stress, high copper density, long time use no deformation.
2. SIEMENS,KND,FANUC,MITSUBISHI,GSK and other operating systems can be selected according to customer requirements.
3. Guide rail and lead screw adopt taiwan brand The guide rail is quenched at intermediate frequency and precisely scraped ensure accuracy.
4. Schneider safety electrical components Quick plug as standard, Make the machine performance better.
Standard configuration:
1. syntec 22ma control system
2. bt40 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -disc-atc
6.Electrical cabinet cold air exchanger
Product Specification:
