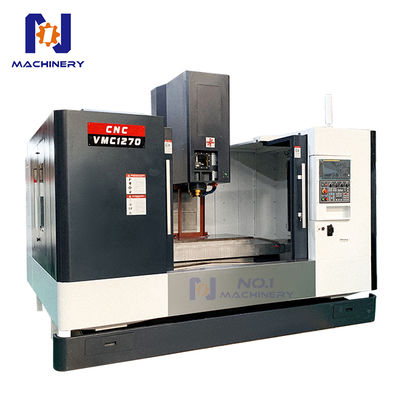

VMC1270 Fanuc Control System Vertical CNC Milling Machine 24 ATC BT40 Spindle
| MOQ: | 1 set |
| Price: | 40000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
VMC1270
Size Of Worktable (mm):
1260*700
Maximum Load On Table（kg）:
1000
X/Y/Z Axis Stroke（mm）:
1200*700*700
Spindle Speed（rpm）:
8000
Machine Weight(kg):
8000
Overall Size(mm):
3400*2900*3000
Highlight:
VMC1270 vertical cnc milling machine
,24 ATC vertical cnc milling machine
,BT40 vertical milling center
Product Description
VMC1270 Fanuc Control System Vertical Machining Center 24 ATC BT40 Spindle
The CNC machine tool features an optimized structure and shape design, characterized by compactness, rational layout, and enhanced rigidity. It is capable of machining a wide range of workpieces, including flat plates, shells, and complex components such as molds and CAM-designed parts. The machine performs drilling, milling, and tapping operations, making it well-suited for batch production. It effectively meets the processing needs for drilling, tapping, and milling of small to medium-sized workpieces.
Standard configuration:
1. syntec 22ma control system
2. bt40 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -disc-atc
6.Electrical cabinet cold air exchanger
Optional configuration:
1. Siemens, FANUC, Mitsubishi, GSK, KND
2. spindle RPM 10000 Timingbelt /12000 Direct drive
3.Coolant through spindle(CTS)
4.Workpiece measuring probe
5.Screw type chip conveyor
6.4- axis /5-axis
Product Specification:
