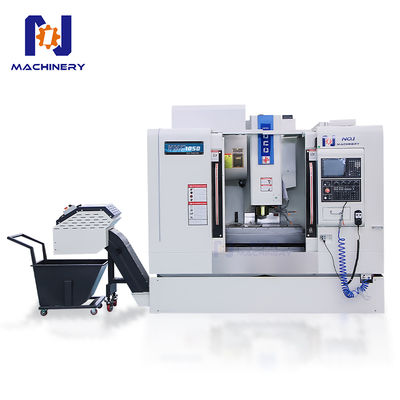

Big Size VMC1050 Vertical Machining Center Metal CNC Milling Machine
| MOQ: | 1 set |
| Price: | 21000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
VMC1050
Size Of Worktable (mm):
1370X500
Spindle End Taper/diameter:
BT40-150
Maximum Load On Table（kg）:
800
X/Y/Z Axis Stroke（mm）:
1000x500x550
Spindle Speed（rpm）:
8000/10000/12000
Machine Weight(kg):
6700
Highlight:
Vertical Machining Center VMC1050
,Big Vertical Machining Center
,800kg metal cnc milling machine
Product Description
VMC Big Size Vertical Machining Center Metal Cnc Milling Machine for Sale
VMC machining center series products are mainly used for the production of precision molds, automotive parts, aerospace parts, batch processing of high-precision parts for regular production, etc.And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Standard configuration:
1. syntec 22ma control system
2. bt40 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -disc-atc
6.Electrical cabinet cold air exchanger
Optional Configuration:
spindle RPM 10000 Timingbelt /12000 Direct drive
Spindle oil cooler
Coolant through spindle(CTS)
Workpiece measuring probe
Pedal to the brakes
Screw type chip conveyor
chain tvpe chip conveyor
4- axis /5-axis
Electrical Cabinet Air Conditioning(AC)
Siemens, FANUC, Mitsubishi, GSK, KND
spindle RPM 10000 Timingbelt /12000 Direct drive
