VMC855 Vertical Machining Center VCM Machining Center Vertical
| MOQ: | 1 set |
| Price: | 20000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
VMC855
Document
Size Of Worktable (mm):
1000X550
X/Y/Z Axis Stroke（mm）:
800X550X550
T-shaped Groove For Table(mm):
5-18x100
Maximum Load On Table（kg）:
550
X/Y/Z Rail Width（mm）:
35/45/45
Pindle End Taper/diameter（mm）:
BT40-150
Spindle Motor Power(kw):
7.5
Highlight:
VMC855 vertical machining center vmc
,8000rpm vertical machining center vmc
,12000rpm machining center vertical
Product Description

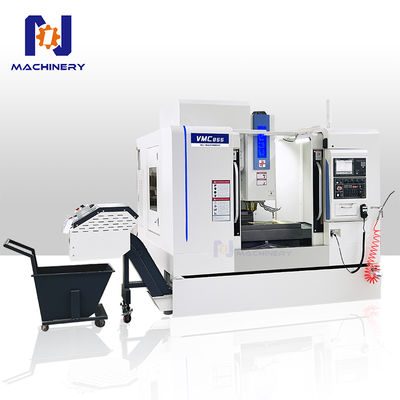

Wholesale Machining Center Cnc Milling VMC855 Vertical Machining Center
VMC855 machining center is mainly used for the production of precision molds, automotive parts, aerospace parts, batch processing of high-precision parts for regular production, etc.And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Product Features:
1.Taiwan KENTURN BT40 Spindle, Optional 8000, 10000, 12000rpm
2.OKADA 24 TOOLS, Automatic tool changing system, 24-ATC
3.Yunnan HT300 resin sand casting, tempering elimination internal stress, high copper density, long time use no deformation.
4.SIEMENS,KND,FANUC,MITSUBISHI,GSK and other operating systems can be selected according to customer requirements
5.Schneider safety electrical components Quick plug as standard Make the machine performance better.
Optional Configuration:
Siemens, FANUC, Mitsubishi, GSK, KND
spindle RPM 10000 Timingbelt /12000 Direct drive
Spindle oil cooler
Coolant through spindle(CTS)
Workpiece measuring probe
Pedal to the brakes
Screw type chip conveyor
chain tvpe chip conveyor
4- axis /5-axis
Electrical Cabinet Air Conditioning(AC)
Product Specification:
