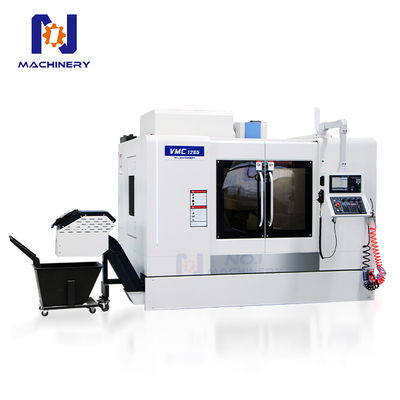

4 Axis CNC Machining Center VMC1265 Vertical CNC Milling Machine
| MOQ: | 1 set |
| Price: | 25000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
VMC1265
Document
Size Of Worktable (mm):
1300*650
Spindle End Taper/diameter:
BT40-150
Maximum Load On Table（kg）:
800
X/Y/Z Axis Stroke（mm）:
1200*650*650
Spindle Speed（rpm）:
8000
Machine Weight(kg):
7500
Overall Size(mm):
3200*2450*2650
Highlight:
BT40 4 axis cnc machining center
,VMC1265 4 axis cnc machining center
,4 Axis vertical cnc milling machine
Product Description
Hot Selling 4 Axis Cnc Machining Center VMC1265 Vertical CNC Milling Machine Price
Application:
VMC series vertical CNC milling machine adopts vertical frame layout, the column is fixed on the bed body, the headstock moves up and down along the column (Z direction), the slide moves longitudinally along the bed (Y direction), and the table moves laterally along the slide (X To) the structure. . Can be achieved for a variety of plate, plate and shell, complex parts, such as CAM, mold processing, can complete drilling, milling, tapping and other processes, is suitable for batch production of products, can meet the drilling, tapping, milling process of small and medium-sized workpiece processing.
Product Features:
1 High-precision castings, quenched to eliminate internal stress and ensure accuracy
2 CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
3 The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure that the backlash and thermal deformation of the machine are kept low for a long time.
4 The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the bearing life.
5 High-precision Taiwan spindle, good stability and long life
6 Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics, can do rapid
displacement and obtain the best cycle accuracy.
7. Fully automatic electronic lubrication system for uniform oil supply and good stability.
2 CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
3 The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure that the backlash and thermal deformation of the machine are kept low for a long time.
4 The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the bearing life.
5 High-precision Taiwan spindle, good stability and long life
6 Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics, can do rapid
displacement and obtain the best cycle accuracy.
7. Fully automatic electronic lubrication system for uniform oil supply and good stability.
Standard configuration:
1. syntec 22ma control system
2. bt40 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -disc-atc
6.Electrical cabinet cold air exchanger
Product Specification:
