China Double-worktable Cnc Milling Machine HMC1000 Horizontal Machining Center
| MOQ: | 1 set |
| Price: | 150000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
HMC1000S
Document
Size Of Worktable (mm):
1000x1000
X/Y/Z Axis Stroke（mm）:
1600X1000X1000
Pindle End Taper/diameter（mm）:
BT50-190
Maximum Load On Table（kg）:
1200
X/Y/Z Rail Width（mm）:
55/55/65
Spindle Motor Power（kw）:
23
Form Of Tool Magazine:
Disc／Chain
Product Description

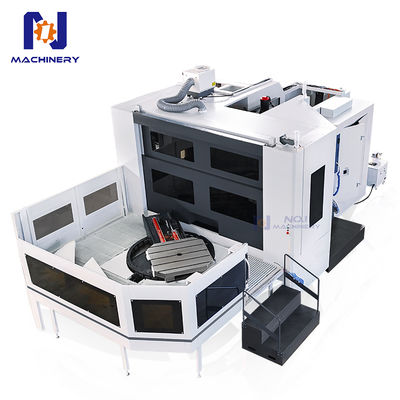

China Double-worktable Cnc Milling Machine HMC1000 Horizontal Machining Center
Product Description:
The HMC1000S is a high-precision, high-efficiency horizontal machining center suitable for machining a wide range of parts. It features strong load-bearing capacity and can easily handle large and heavy workpieces.Equipped with a high-speed spindle and automatic tool changer, the machine ensures fast tool changes and greatly improves production efficiency.The automatic rotation and exchange of double pallets allow multi-sided machining of parts. Meanwhile, loading and unloading can be performed simultaneously during machining, overlapping auxiliary time with processing time to achieve highly efficient automated operation.
Standard Configuration:
1.syntec 22ma control system
2.Bt50 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 30 -Disc- atc
6.Table: 700 x 630 mm 1 °/360 °
Product Specification:
Details Display:
