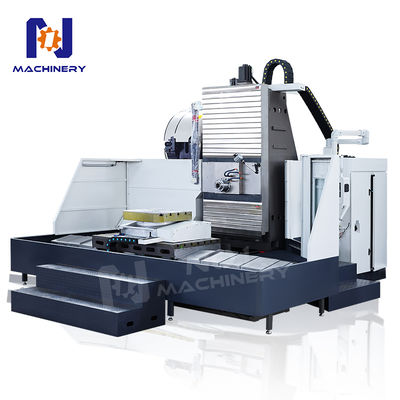

HMC1614 CNC Horizontal Milling Center BT50 HMC Machine 3 Axis
| MOQ: | 1 set |
| Price: | 58000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
HMC1614
Document
Size Of Worktable (mm):
1000x1600
X/Y/Z Axis Stroke（mm）:
1600X1400X1200
Pindle End Taper/diameter（mm）:
BT50/Φ190
Maximum Load On Table（kg）:
3000
Workbench T-slot (number - Size X Pitch):
7-22x140
Spindle Motor Power（kw）:
22
Form Of Tool Magazine:
Disc／Chain
Highlight:
CNC horizontal milling center
,HMC1614 horizontal milling center
,BT50 hmc machine
Product Description
HMC1614 Horizontal Machining Center BT50 Horizontal Cnc Milling Machine for Sale
Product Description:
The HMC1614 is a high-precision inverted T-type horizontal machining center, ideal for efficient part processing. Its horizontal layout and transverse worktable movement ensure stable operation. The rigid cast iron bed supports large, heavy workpieces. Equipped with a high-speed spindle and automatic tool changer, it boosts productivity. Featuring multi-axis control and a 360° rotary worktable, it enables complex, multi-sided machining.
Standard Configuration:
1.syntec 22ma control system
2.Bt50 Taiwan 6000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 30 -Disc- atc
Optional Configuration:
1.control system:Siemens, FANUC, Mitsubishi, GSK,KND
2.Coolant through spindle(CTS)
3.Screw type chip conveyor
4.chain tvpe chip conveyor
5.Vertical 4-axis turntable (800/1000)
6.5- axis turntable
Product Specification:
|
item
|
value
|
|
Table Size (mm)
|
1000*1600
|
|
Table Travel (X) (mm)
|
1600
|
|
Table Travel (Y) (mm)
|
1400
|
|
Condition
|
New
|
|
Spindle Taper
|
BT50
|
|
No. of Spindles
|
Single
|
|
Type
|
Horizontal
|
|
Weight (T)
|
13
|
|
Table Travel (Z) (mm)
|
1200
|
|
Positioning Accuracy (mm)
|
±0.005
|
|
Repeatability (X/Y/Z) (mm)
|
±0.003
|
|
Range of Spindle Speed(r.p.m)
|
0r.p.m - 6000r.p.m
|
|
Max. Table Load(kg)
|
3000kg
|
|
Min. Time of Tool Change(s)
|
2
|
|
Tool Magazine Capacity
|
24
|
|
Warranty
|
2 Year
|
|
X/Y/Z guide rail form
|
45/55/box way
|
|
X/Y/Z Axis motor power
|
6/5/5kw
|
|
X/Y/Z Axis motor torque
|
38/30/30 NM
|
|
T-slot
|
7-22*140
|
|
Casting machine
|
HT300 gray cast iron
|
|
Control system
|
GSK SIEMENS FANUC
|
|
Brand
|
NO.1MACHINERY
|
|
Motor
|
22KW Wide area servo motor
|
Details Display:
