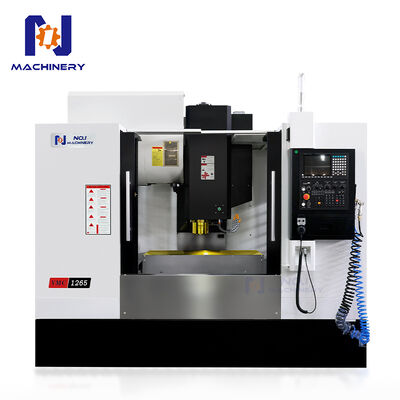

VMC1265 Discount Price Metal CNC Milling Machine CE Certified Machining Center Prices
| MOQ: | 1 set |
| Price: | 20000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 20 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
VMC1265 Discount Price Metal CNC Milling Machine CE Certified Machining Center Prices
Machine Tool Features:
This machine tool inherits the advantages of traditional vertical CNC milling machines, such as strong frame rigidity, symmetrical structure, and high stability. It incorporates internationally advanced dynamic rigidity design concepts and optimizes the design of moving parts. This gives the machine tool high rigidity, large torque, and rapid response characteristics, making it suitable for various machining needs in the automotive, aerospace and hardware industries.
1. The three-axis movement uses linear guideways, ensuring precise positioning through rapid three-axis movement.
2. The machine tool base, worktable, column, crossbeam, slide saddle, and spindle box are made using resin sand molding.
3. High-strength cast iron, treated with double annealing, completely eliminates casting stress and internal stress generated during rough machining, ensuring high structural rigidity, high stability, and permanently guaranteed quality.
Standard configuration:
1. Taiwan OKADA 24 -Disc-ATC.
2. BT40 Taiwan 8000 RPM spindle.
3.SYNTEC 22MA control system.
4.Electrical cabinet cold air exchanger.
1.Spindle BT50-150(BT50 ATC).
3.Spindle oil cooler.
4.Coolant through spindle.
5.Workpiece measuring probe.
6.Screw type chip conveyor.
7.Chain type chip conveyor.
8.Taiwan HIWIN.THK,screw
9.4-axis/5-axis.
10.Tool setting probe
11.Optional:SIEMENS,KND,FANUC,MITSUBISHI control system.
|
Item Model |
Unit |
VMC1265 |
|
Size of worktable |
mm |
1300X650 |
|
X/Y/Z rail width |
mm |
45/45/45 |
|
X/Y/Z ball screw specification |
mm |
4012/4012/4012 |
|
X/Y/Z Axis stroke |
mm |
1200x650x650 |
|
X/Y/Z motor torque |
NM |
18/18/18 |
|
Distance from spindle face to table |
mm |
120-770 |
|
Distance from Spindle Center to column |
mm |
673 |
|
Cutting feed rate |
mm/min |
1-10000 |
|
X/Y/Z axis fast feed |
m/min |
36/36/36 |
|
pindle end taper/diameter |
mm |
BT40-150 |
|
Spindle motor power |
kw |
11 |
|
Maximum spindle speed |
rpm |
8000/10000/12000 |
|
Form of Tool Bank |
- |
Disc |
|
The capacity of knife storage |
tools |
24 |
|
Maximum tool diameter/weight |
mm/kg |
78/120/8 |
|
Tool change time |
sec |
2.5 |
|
Positioning accuracy |
mm |
0.008 |
|
Repeat positioning accuracy |
mm |
0.005 |
|
The smallest unit of positioning |
mm |
0.005 |
|
Weight of machine tool |
kg |
7500 |
|
External dimensions |
mm |
3200*2450*2650 |
Product Display:
