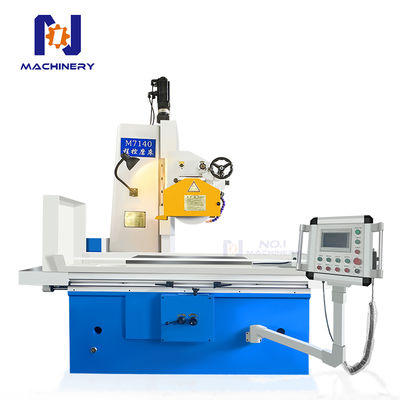

Durable M7140 Long Service Life Surface Grinding Machine for Industrial Machining
| MOQ: | 1 |
| Price: | 12000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 20 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
M7140
Working Table Size(mm):
400×1000
Maximum Grinding Size (W X L X H):
1000×400×400
Wheel Size(mm):
400×40×203
Motor Total Power(kw):
15.22
Wheel Spindle Motor(kw):
7.5
N./G. Weight(kg):
4100/4500
Package Dimensions (L ×W × H)(mm):
3800×2600×2700
Product Description
Durable M7140 Long Service Life Surface Grinding Machine for Industrial Machining
This machine is a flat surface machine that utilizes a grinding wheel for peripheral grinding. The end face of the grinding wheel can also be used to grind vertical surfaces of workpieces. Depending on the workpiece, it can be secured to an electromagnetic chuck, directly fixed to the worktable, or clamped and ground using other fixtures.This machine offers high precision, excellent rigidity, and ease of operation.
Product specification:
| Working table size(WxL) | mm | 400×1000 |
| Maximum grinding size (W x L x H) | mm | 1000×400×400 |
| Max.table longitudinal travel | mm | 1100 |
|
Max.cross travel of gringing head
|
mm
|
450
|
|
Max.vertical travel of grinding head
|
mm
|
400
|
|
Feed on vertical feed handwheel(Per grad.)
|
mm
|
0.005
|
|
Feed on vertical feed handwheel(Per rev.)
|
mm
|
0.5
|
|
Electronic handwheel for grinding head infeed(Per grad)
|
mm
|
0.01
|
|
Electronic handwheel for grinding head infeed(Per rev.)
|
mm
|
1
|
|
Wheel size
|
mm
|
400×40×203
|
|
The rotating speed of grinding wheel
|
r/min
|
1440
|
|
Motor total power
|
kw
|
15.22
|
|
Wheel spindle motor
|
kw
|
7.5
|
|
Oil pump motor
|
kw
|
5.5
|
|
Machining parallelism
|
mm
|
0.015
|
|
Surface roughness
|
Ra
|
≤ 0.63
|
|
Package Dimensions (L ×W × H)
|
mm
|
3800×2600×2700
|
|
N./G. weight
|
kg
|
4100/4500
|
Details Display:
