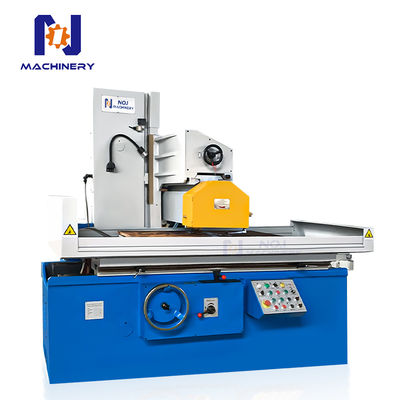

Professional M7163 Fast Grinding Speed Surface Grinding Machine for Metal Processing
| MOQ: | 1 |
| Price: | 15000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 20 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
M7163
Working Table Size(mm):
1250X630
Max.grinding Size No Chuck(LxWxH)(mm):
1250X630X550
Wheel Size(mm):
400X50X203
Motor Total Power(kw):
15.2
Wheel Spindle Motor(kw):
7.5
N./G. Weight(kg):
5200/5600
Package Dimensions (L ×W × H)(mm):
2820X2100X2750
Product Description
Professional M7163 Fast Grinding Speed Surface Grinding Machine for Metal Processing
This machine is a flat surface machine that utilizes a grinding wheel for peripheral grinding. The end face of the grinding wheel can also be used to grind vertical surfaces of workpieces. Depending on the workpiece, it can be secured to an electromagnetic chuck, directly fixed to the worktable, or clamped and ground using other fixtures.This machine offers high precision, excellent rigidity, and ease of operation.
Product specification:
|
Working table size
|
mm
|
1250X630
|
|
Max.grinding size no chuck(LxWxH)
|
mm
|
1250X630X550
|
|
Max.table longitudinal travel
|
mm
|
1300
|
|
Max.cross travel of gringing head
|
mm
|
680
|
|
Max.vertical travel of grinding head
|
mm
|
550
|
|
Wheel size
|
mm
|
400X50X203
|
|
The rotating speed of grinding wheel
|
r/min
|
1400
|
|
Motor total power
|
kw
|
15.2
|
|
Wheel spindle motor
|
kw
|
9
|
|
Oil pump motor
|
kw
|
5.5
|
|
Machining parallelism
|
r/min
|
0.008/300
|
|
Motor total power
|
kw
|
15.22
|
|
Wheel spindle motor
|
kw
|
7.5
|
|
Oil pump motor
|
kw
|
5.5
|
|
Surface roughness
|
Ra
|
0.63
|
|
Package Dimensions (L ×W × H)
|
mm
|
2820X2100X2750
|
|
N./G. weight
|
kg
|
5200/5600
|
Details Display:
