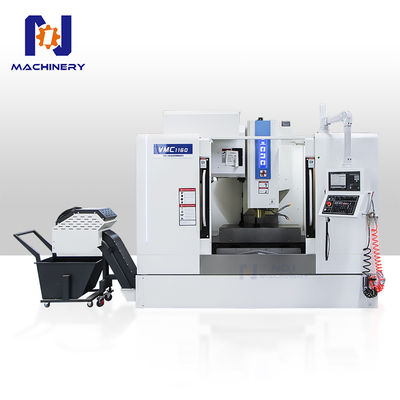

VMC1160 CNC Vertical Machining Center GSK Control System BT40 for Metal Processing
| MOQ: | 1 set |
| Price: | 24000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
VMC1160
Document
Size Of Worktable (mm):
1200*600
Spindle End Taper/diameter:
BT40
Maximum Load On Table（kg）:
800
X/Y/Z Axis Stroke（mm）:
1100*600*600
Spindle Speed（rpm）:
8000/10000/12000
Machine Weight(kg):
6800
Overall Size(mm):
3200*2450*2650
Product Description
VMC1160 CNC Vertical Machining Center GSK Control System BT40 for Metal Processing
This CNC machine tool is capable of drilling, milling, and tapping a wide range of workpieces, from flat plates and shells to complex parts like molds and CAM-designed components. Its optimized structure, characterized by a compact design, rational layout, and enhanced rigidity, makes it well-suited for batch production and effectively meets the processing needs of small to medium-sized workpieces.
Product Features:
1 High-precision castings, quenched to eliminate internal stress and ensure accuracy
2 CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
3 The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure that the backlash and thermal deformation of the machine are kept low for a long time.
4 The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the bearing life.
5 High-precision Taiwan spindle, good stability and long life
6 Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics, can do rapid
displacement and obtain the best cycle accuracy.
7. Fully automatic electronic lubrication system for uniform oil supply and good stability.
2 CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
3 The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure that the backlash and thermal deformation of the machine are kept low for a long time.
4 The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the bearing life.
5 High-precision Taiwan spindle, good stability and long life
6 Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics, can do rapid
displacement and obtain the best cycle accuracy.
7. Fully automatic electronic lubrication system for uniform oil supply and good stability.
Standard configuration:
1. syntec 22ma control system
2. bt40 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -disc-atc
6.Electrical cabinet cold air exchanger
Optional configuration:
1. Siemens, FANUC, Mitsubishi, GSK, KND
2. spindle RPM 10000 Timingbelt /12000 Direct drive
3.Coolant through spindle(CTS)
4.Workpiece measuring probe
5.Screw type chip conveyor
6.4- axis /5-axis
