ZX6336A Drilling Milling Machine Heavy Duty Fresadora Manual With DRO
| MOQ: | 1 set |
| Price: | 6600USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
ZX6336A
Document
Maximum Diameter Of Drilled Hole(mm):
50
Table Size(mm):
1500x360
Table Travel(mm):
1000/360/450
Spindle Taper Hole:
MT4
Maximum Tapping Diameter:
M16
Spindle Speed Range(rpm):
80-550
Motor Power(kw):
1.5/2.2
Highlight:
ZX6336A Drilling Milling Machine
,Heavy Duty Drilling Milling Machine
,Manual drilling and milling machine
Product Description

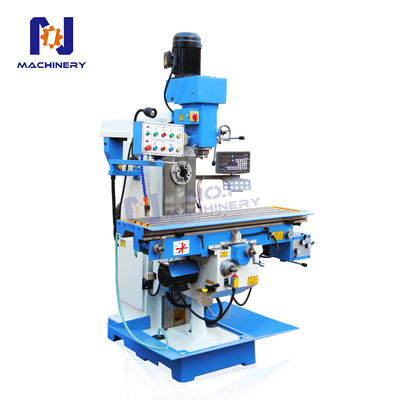

ZX6336A Drilling Milling Machine Heavy Duty Fresadora Manual Milling Machine with DRO
The ZX6336A is a versatile drill milling machine that integrates drilling, milling, and tapping functions. It features a compact structure and flexible operation. Its spindle head can swivel laterally, and the table moves in three directions, making it suitable for machining planes, grooves, and gears on small to medium parts. It is an ideal choice for tool maintenance and workshop applications.
standard configuration:
X／Y axis automatic tool feed
optional configuration:
1. Spindle automatic feed
2. Can be changed to three-axis CNC
3.4kw Main motor optional large head 4KW
Product specification:
Details Display:
