ZX50C Drilling Milling Machine Manual Milling Machine X Axis Automatic Tool Feed DRO

ZX50C Drilling Milling Machine Manual Milling Machine X Axis Automatic Tool Feed DRO

MOQ: 1 set
Price: 1300USD
Standard Packaging: Export standard wooden case or as customers' requirement
Delivery Period: 15 days after getting the deposit.
Payment Method: T/T
Supply Capacity: 1000 sets/month
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
ZX50C
Document
Maximum Diameter Of Drilled Hole(mm):
50
Table Size(mm):
900*240
Table Travel(mm):
400/230/120
Spindle Taper:
MT4
Spindle Speed Range(rpm):
115-1750
Distance Between Spindle Nose And Table Surface(mm):
38-430
Motor Power(kw):
1.5/2.2
Highlight:

ZX50C drilling milling machine

,

X Axi drilling milling machine

,

120mm Manual Milling Machine

Product Description

ZX50C Manual Milling X-axis Automatic Tool Feed DRO Drilling and Milling Machine



The drilling and milling machine ZX50C is a multifunctional machine tool that integrates drilling and milling functions and is suitable for the processing of small and medium-sized parts. The equipment has a compact structure, easy operation, high processing accuracy and stability. The spindle speed range is wide, which can meet the processing needs of various materials. ZX50C is widely used in machinery manufacturing, mold processing and other fields, and is an ideal choice for small and medium-sized enterprises.



standard configuration:

1. X-axis automatic tool feed

optional configuration:

1. Y-axis automatic tool feed

2. Electric lift of Z axis

3.Three-axis digital display

4.Two-axis digital display

Product specification:

Name
Unit
ZX50C
Maximum diameter of drilled hole
mm
50
End mill maximum width
mm
100
Maximum diameter of vertical milling
mm
25
Boring maximum diameter
mm
120
Maximum tapping diameter
mm
M16
Spindle taper hole

MT4
Distance from spindle end face to table
mm
38-430
Spindle speed range
rpm
115-1750
Spindle stroke(z)
mm
120
Working desk size
mm
900*240
Workbench stroke
mm
500*250
Dimensions
mm
1100*970*1650
Motor power
kw
1.5/2.2
Weight
Kg
500/600

Details Display:

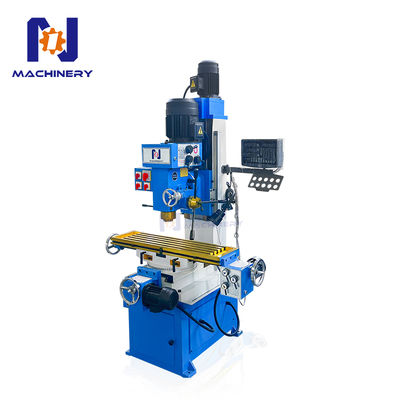

ZX50C Drilling Milling Machine Manual Milling Machine X Axis Automatic Tool Feed DRO 0

ZX50C Drilling Milling Machine Manual Milling Machine X Axis Automatic Tool Feed DRO 1

ZX50C Drilling Milling Machine Manual Milling Machine X Axis Automatic Tool Feed DRO 2

ZX50C Drilling Milling Machine Manual Milling Machine X Axis Automatic Tool Feed DRO 3
