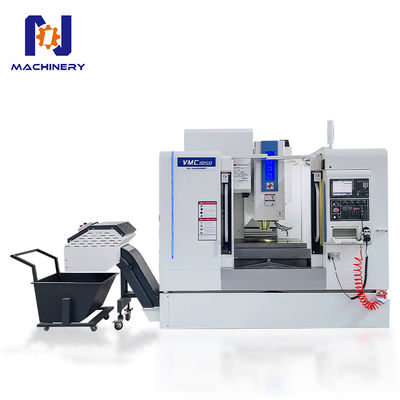

VMC1050 Vertical Machining Center Fresadora 4 Axis CNC Milling Machine
| MOQ: | 1 set |
| Price: | 21000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
VMC1050
Size Of Worktable (mm):
1370X500
Spindle End Taper/diameter:
BT40-150
Maximum Load On Table（kg）:
800
X/Y/Z Axis Stroke（mm）:
1000x500x550
Spindle Speed（rpm）:
8000/10000/12000
Machine Weight(kg):
6700
Overall Size(mm):
3200x2400x2800
Highlight:
VMC1050 Vertical Machining Center
,10000rpm Vertical Machining Center
,Fresadora 4 axis cnc milling machine
Product Description
VMC1050 Vertical Machining Centre Fresadora 4 Axis Cnc Milling Machine Price
Product Description:
VMC machining center series products are mainly used for the production of precision molds, automotive parts, aerospace parts, batch processing of high-precision parts for regular production, etc.And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Product Features:
1. Yunnan HT300 resin sand casting, tempering elimination internal stress, high copper density, long time use no deformation.
2. SIEMENS,KND,FANUC,MITSUBISHI,GSK and other operating systems can be selected according to customer requirements.
3. Guide rail and lead screw adopt taiwan brand The guide rail is quenched at intermediate frequency and precisely scraped ensure accuracy.
4. Schneider safety electrical components Quick plug as standard, Make the machine performance better.
Quality Testing:
1. Verticality/Levelity Detection
2.Renishaw laser compensator
3.Roundness testing/ballbar testing
Standard configuration:
1. syntec 22ma control system
2. bt40 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -disc-atc
6.Electrical cabinet cold air exchanger
Product Specification:
