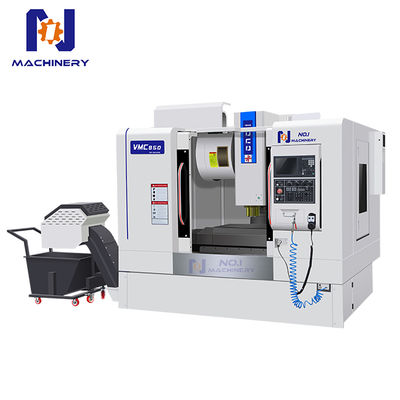

VMC850 CNC Vertical Machining Center BT40 Spindle VMC Machining Milling Machine
| MOQ: | 1 set |
| Price: | 18500USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
VMC850
Document
Size Of Worktable (mm):
1000X500
X/Y/Z Axis Stroke（mm）:
800x500x500
T-shaped Groove For Table(mm):
5-18X102
Maximum Load On Table（kg）:
400
X/Y/Z Rail Width（mm）:
35/35/35
Pindle End Taper/diameter（mm）:
BT40-150
Weight Of Machine Tool（kg）:
5100
External Dimensions（mm）:
2800X2350X2650
Highlight:
VMC850 Vertical Machining Center
,CNC Vertical Machining Center
,BT40 vmc machining
Product Description
VMC850 CNC Vertical Machining Center BT40 Spindle CNC Milling Machine
Product Description
VMC850 machining center is mainly used for the production of precision molds, automotive parts, aerospace parts, batch processing of high-precision parts for regular production, etc.And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Product Features
1.Taiwan KENTURN BT40 Spindle, Optional 8000, 10000, 12000rpm
2.OKADA 24 TOOLS, Automatic tool changing system, 24-ATC
3.Yunnan HT300 resin sand casting, tempering elimination internal stress, high copper density, long time use no deformation.
4.SIEMENS,KND,FANUC,MITSUBISHI,GSK and other operating systems can be selected according to customer requirements
5.Schneider safety electrical components Quick plug as standard Make the machine performance better.
