Z3040 Radial Drilling Machine with Motor & Engine 2.2kW Power 220V/380V
| MOQ: | 1 set |
| Price: | 2900USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
Z3040
Maximum Bore Diameter(mm）:
40
Distance From Spindle Face To Base Face（mm）:
260-1000/1300
Distance From Spindle Center Line To Column Busbar（mm）:
360-1000/1300
Spindle Stroke(mm):
200/280
Spindle Speed Range(rpm):
75-1200
Spindle Taper Hole (Morse):
MT4
Spindle Speed Series:
6/12
External Dimensions(mm):
1620/1800X760X2200
Weight(kg):
1200/1400
Product Description

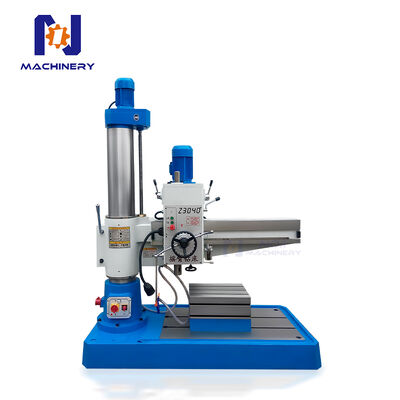

Z3040 Radial Drilling Machine with Motor & Engine 2.2kW Power 220V/380V
The Z3040 Radial Drilling Machine is a versatile hole-processing device. Its radial arm can revolve around the column, while the spindle head slides along the arm, making it convenient to drill multiple holes on large workpieces. With flexible operation and strong performance, it is ideal for drilling, reaming, boring, and counterboring operations, delivering consistent stability.
Standard configuration:
1.hydraulic transmission
2.hydraulic pre - selection
3.hydraulic clamping
4.mechanical and electrical double insurance
5.hydraulic change speed
Product specification:
