40mm Drilling Capability Z3040*10/13 Double Column Mechanical Radial Drilling Machine
| MOQ: | 1 set |
| Price: | 2900USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
Z3040
Maximum Bore Diameter(mm）:
40
Distance From Spindle Face To Base Face（mm）:
260-1000/1300
Distance From Spindle Center Line To Column Busbar（mm）:
360-1000/1300
Spindle Stroke(mm):
200/280
Spindle Speed Range(rpm):
75-1200
Spindle Taper Hole (Morse):
MT4
Spindle Speed Series:
6/12
External Dimensions(mm):
1620/1800X760X2200
Weight(kg):
1200/1400
Product Description
0mm Drilling Capability Z3040*10/13 Double Column Mechanical Radial Drilling Machine

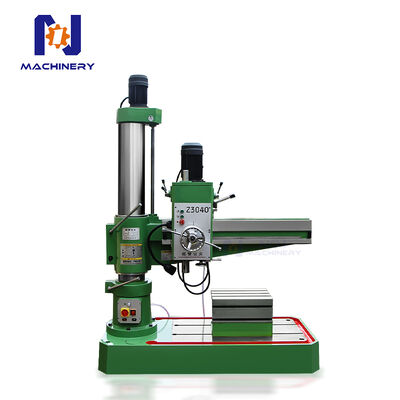

The Z3040 Radial Drilling Machine is a highly versatile hole-making equipment. Its arm rotates around the column and the head moves along the arm, facilitating multi-hole machining of large workpieces. It offers flexible operation, powerful performance, and is suitable for drilling, reaming, boring, and counterboring with reliable stability.
Standard configuration:
1.hydraulic transmission
2.hydraulic pre - selection
3.hydraulic clamping
4.mechanical and electrical double insurance
5.hydraulic change speed
Product specification:
