Manual Lathe Heavy Duty Lathe Machine Price XA6240 Horizontal Flat Bed Lathe
  • name
  • name
  • name
  • name

Manual Lathe Heavy Duty Lathe Machine Price XA6240 Horizontal Flat Bed Lathe

MOQ: 1 set
Price: 23000USD
Standard Packaging: Export standard wooden case or as customers' requirement
Delivery Period: 15 days after getting the deposit.
Payment Method: T/T
Supply Capacity: 1000 sets/month
Details Information
Product Description
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
XA6240
Document
XA6240.pdf
Table Size(mm):
1700x400 (2000x400)
X Direction (table Longitudinal) Manual / Auto:
900／880
Y Direction (slide Lateral) Manual / Auto:
315/300
Z Direction (lifting Table Vertical) Manual / Auto:
380/360
Workbench Maximum Overload(kg):
500
Work Table T-slot Number/width/spacing:
3-18-90
Spindle Speed Range(rpm):
V: 35-1600 H: 30-1500
Product Description

Manual Lathe Heavy Duty Lathe Machine Price XA6240 Horizontal Flat Bed Lathe

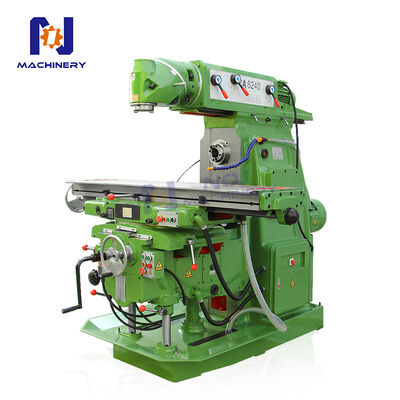

XA6240 Heavy-Duty Universal Milling Machine features a precision swivel head that rotates freely to any spatial orientation, enabling versatile vertical, horizontal and angular milling operations with seamless adaptability. Boasting a rugged, high-rigidity frame and high-power drive system, it is purpose-built for heavy-cut machining of large workpieces, serving as an indispensable core equipment for machinery manufacturing, mold processing and heavy equipment production industries.


standard configuration:

1. Three-axis automatic feed

2. Standing and lying

optional configuration:

1. Three-axis digital display

2. Dividing head

3.Can be changed to CNC

4.Pressure Plate

Product specification:

PARAMETER ITEM
UNIT
XA6232
XA6240
Working desk size
mm
1320x320(1600x320)
1700x400 (2000x400)
Work table T-slot number / width/spacing
mm
3-18-70
3-18-90
Workbench maximum overload
kg
300
500
X direction (table longitudinal) manual/ maneuver
mm
700 /680( 900 Optional)
900/880( 1100 Optional)
Y direction (slide lateral) manual / maneuver
mm
255/240
315/300
Z direction (lifting table vertical) manual / maneuver
mm
380/360
380/360
Cutting feed rate
mm/min
X. Y:23.5-1180 Z:8-394
X. Y:23.5-1180 Z:8-394
Fast moving speed
mm/min
X:2300 Y:2300 Z:770
X:2300 Y:2300 Z:770
Spindle speed range (V/H)
rpm
V: 35-1600 H: 30-1500
V: 35-1600 H: 30-1500
Spindle speed series (V/H)
steps
V: 11 H: 18
V:11 H:18
Spindle Taper
-
V:ISO40 7:24 H:ISO50 7:24
V:ISO40/50 7:24 H:ISO50 7:24
Worktable maximum turning angle
.
±45°
±45°
Spindle center to table distance
mm
30-350
30-410
Spindle motor power
kw
7.5
11
Dimensions
mm
2294x1770x1665
2560x2130x1800
Machine weight (about)
kg
2650
3850

Details Display:

Manual Lathe Heavy Duty Lathe Machine Price XA6240 Horizontal Flat Bed Lathe 0

Manual Lathe Heavy Duty Lathe Machine Price XA6240 Horizontal Flat Bed Lathe 1

Manual Lathe Heavy Duty Lathe Machine Price XA6240 Horizontal Flat Bed Lathe 2

Manual Lathe Heavy Duty Lathe Machine Price XA6240 Horizontal Flat Bed Lathe 3
