Heavy-Duty CK61125 Horizontal Flat Bed CNC Lathe Machines with130mm Spindle Hole
| MOQ: | 1 set |
| Price: | 21000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 100 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
CK61125
Document
Max. Swing Over Bed:
1250mm
Max. Swing Over Cross Slide:
880mm
Max. Processing Length:
1000-5000mm
Spindle Bore:
Φ130
Spindle Motor:
15kw
Taper Of Tailstock Sleeve:
MT6
Spindle End Form:
A2-15
Product Description
Heavy-Duty CK61125 Horizontal Flat Bed CNC Lathe Machines with130mm Spindle Hole
Product Description:
Featuring a high-power, high-rigidity spindle with a wide speed range, this lathe is perfect for heavy-duty or high-speed cutting. It handles turning operations (end faces, outer circles, inner holes, metric/inch/module/pitch threads) and supports additional processes including drilling, reaming, and boring—ideal for versatile, efficient workpiece machining.
Standard Configuration:
1. GSK 980 TDC
2. Spindle Unit A2-11/15/through hole 105/130
3. 500mm 3-jaws/800mm 4-jaws
4.The main spindle gear box 4 gears
5. 4-station tool holder
6. Bed guide width 600/755/1100mm
Optional Configuration:
1. 8 station electric knife tower
2.500mm hydraulic Chuck/hydraulicTailstock
3. System: STNTEC, Mitsubishi, Siemens, FANUC
4. Spindle through hole 130
5. Optional length: 1/1.5/2/3/4/5m
Product Specification:
|
Item Model
|
Unit
|
CK61125
|
|
Maximum turning diameter of bed
|
mm
|
1250
|
|
Maximum diameter of rotation on skateboard
|
mm
|
880
|
|
Maximum workpiece length
|
mm
|
1000-5000
|
|
Width of guide rail
|
mm
|
600/755/1100
|
|
Spindle hole
|
mm
|
130
|
|
Spindle end form
|
-
|
A2-15
|
|
Spindle speed series
|
|
4-speed
|
|
Spindle speed range
|
rpm
|
835
|
|
Type of tool holder
|
-
|
Vertical 4-station tool holder
|
|
Tool dimensions
|
mm
|
40x40
|
|
X/ZAxis stroke
|
mm
|
640/1000-5000
|
|
X/Z axis fast feed speed
|
mm/min
|
0008/0009
|
|
Diameter of tailstock sleeve
|
mm
|
130
|
|
Taper of tailstock sleeve
|
-
|
MT6
|
|
Tail seat sleeve stroke
|
mm
|
250
|
|
Main motor power
|
kw
|
15
|
|
Cooling motor power
|
kw
|
0.125
|
|
Weight of machine tool
|
kg
|
6000
|
|
External dimensions
|
mm
|
6700X2550X2350
|

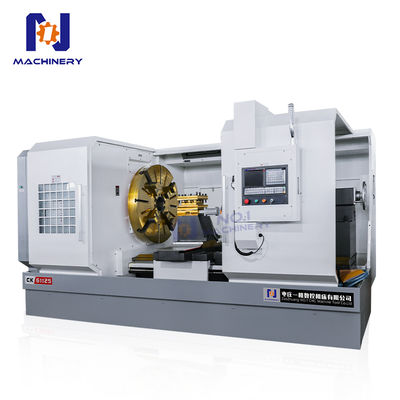

Product Display:
