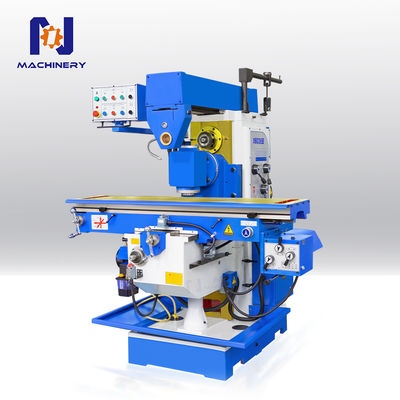

X6036B Universal Milling Machine Industrial Lift Table Milling Machine for Sale
The X6036B horizontal milling machine can perform both vertical and horizontal milling. Major components such as the base, machine body, worktable, middle slide, and lifting slide are all cast from high-strength materials and undergo artificial aging treatment to ensure long-term stability.It features motorized feed in the X, Y, and Z directions. The X, Y, and Z direction guideways are ultra-high frequency quenched and precision ground for enhanced wear resistance.
Standard configuration:
1.X/Y axis automatic.
2.Ecectric lift of Z axis.
Optional configuration:
1.Vertical milling head.
2.Custom tool holder.
3.Electronic oil pump.
4.Universial dividing head.
5.Three-axis digital display.
Product specification:
| PARAMETER ITEM |
UNIT
|
X6036B |
| Working desk size | mm | 1500x360 |
| Number of T-slots | -- | 3 |
| Workbench trip | mm | 1000/360/400 |
| Spindle hole taper | -- | 7:24/ISO50 |
| Spindle speed range | rpm | 60-1800(12 steps) |
| Worktable feed speed | mm/min | 15-370 (8 steps) |
| Workbench down stroke | mm | 500 |
| Worktable vertical lifting speed | mm/min | 560 |
| Motor Power | kw | 4 |
| Dimensions | mm | 2220x1790x1980 |
| Machine weight | kg | 2400/2500 |
| Vertical shaft end to table distance | mm | 50-550 |
| Spindle center to vertical rail surface distance | mm | 320 |
Details Display:
