X6036B Manual Milling X/Y axis Automatic Universal Metal Milling Machine Prices
| MOQ: | 1 set |
| Price: | 6000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
X6036B
Working Desk Size:
1500x360mm
Number Of T-slots:
3
Workbench Trip:
1000X360X400mm
Spindle Speed Range:
60-1800(12 Steps)
Workbench Down Stroke:
500mm
Motor Power:
4kw
Product Description

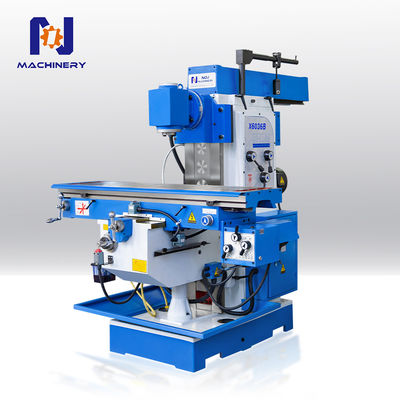

X6036B Manual Milling X/Y axis Automatic Universal Metal Milling Machine Prices
Universal lifting platform milling machine is a kind of general metal cutting machine tool.The machine tool has good structural rigidity and can carry heavy loads for cutting.Suitable for processing a variety of small parts of plane, inclined plane,grooves, holes, and other gear.
Standard configuration:
1.X/Y axis automatic.
2.Ecectric lift of Z axis.
Optional configuration:
1.Vertical milling head.
2.Three-axis digital display.
3.Electronic oil pump.
4.Universial dividing head.
5.Custom tool holder.
Product specification:
| PARAMETER ITEM |
UNIT
|
X6036B |
| Working desk size | mm | 1500x360 |
| Number of T-slots | -- | 3 |
| Workbench trip | mm | 1000/360/400 |
| Spindle hole taper | -- | 7:24/ISO50 |
| Spindle speed range | rpm | 60-1800(12 steps) |
| Worktable feed speed | mm/min | 15-370 (8 steps) |
| Workbench down stroke | mm | 500 |
| Worktable vertical lifting speed | mm/min | 560 |
| Motor Power | kw | 4 |
| Dimensions | mm | 2220x1790x1980 |
| Machine weight | kg | 2400/2500 |
| Vertical shaft end to table distance | mm | 50-550 |
| Spindle center to vertical rail surface distance | mm | 320 |
Details Display:
