Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Metal Band Saw Machine

Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Metal Band Saw Machine

MOQ: 1 set
Price: 7500USD
Standard Packaging: Export standard wooden case or as customers' requirement
Delivery Period: 15 days after getting the deposit.
Payment Method: T/T
Supply Capacity: 1000 sets/month
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
GZ4260
90° Sawing Range(mm):
600x600
45° Sawing Range(mm):
600x520
Sawing Speed(m/min):
27,45,69
Size Of Saw Blade(mm):
7200x54x1.6
Main Motor Power(kw):
7.5
Pump Power(kw):
1.5
Weight Of Machine Tool(kg):
4000
Extemal Dimensions(mm):
3600x1750x2200
Highlight:

Hydraulic Angle horizontal metal band saw machine

,

GZ4260 horizontal metal band saw machine

,

GZ4260 metal cutting band saw horizontal

Product Description

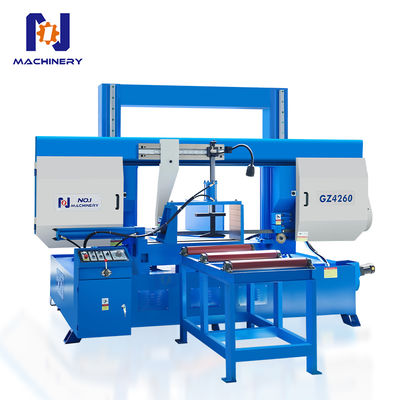

New Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Steel Band Saw Machine



The GZ4260 is a high-efficiency angular band saw designed for precise angle cutting of metal profiles. Its saw frame allows accurate angular adjustment from 0 to 60 degrees, enabling high-precision bevel cuts on high-strength steel, alloy steel, and other materials. With a stable structure, high cutting efficiency, and easy operation, it is widely used in mold making, metallurgy, and structural steel fabrication



optional configuration:

1. saw blade cover protection

2. saw blade broken protection

3.electric feedrack

4.fast down protection

5.protective cover power failure protection

6.saw blade hydraulic clamping

6.saw blade variable speed

7.hydraulic chip conveyor



Product specification:

ARAMETER ITEM
UNIT
GZ4260
90° sawing range
mm
600x600

45° sawing range
mm
600x520
Specification for band saw blades
-
7200x54x1.6
Sawing Speed
m/min
27,45,69/(frequency conversion 20-80)
Feed rate
m/min
Stepless speed regulation
Main motor power
kw
7.5
Pump Power
kw
1.5
Pump Power
W
90
Clamping mode
-
Hydraulic
Weight of machine tool
kg
4000
External dimensions
mm
3600x1750x2200



Details Display:

Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Metal Band Saw Machine 0

Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Metal Band Saw Machine 1

Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Metal Band Saw Machine 2

Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Metal Band Saw Machine 3

Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Metal Band Saw Machine 4
