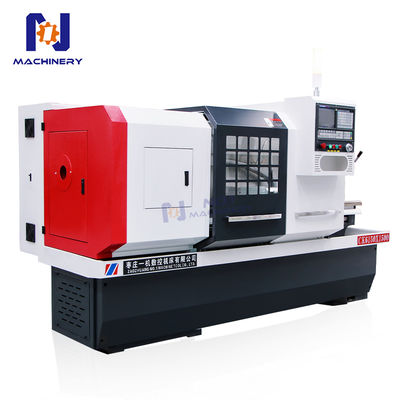

CK6150 Horizontal CNC Lathe Machine 1500mm 4 Station Flat Bed Lathe
| MOQ: | 1 set |
| Price: | 8600USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
CK6150
Document
Max. Swing Over Bed:
500mm
Max. Swing Over Cross Slide:
300mm
Max. Processing Length:
750-2000mm
Spindle Speed:
50-1700rpm
Spindle Bore:
Φ82
Spindle Motor:
7.5kw
Head Chuck Size:
250mm
Quill Taper:
MT5
Tool Post Type:
4-position Electric Turret
Highlight:
CK6150 horizontal cnc lathe machine
,1500mm horizontal cnc lathe machine
,4 Station horizontal cnc turning
Product Description
CK6150 Horizontal CNC Lathe Machine Cnc Turning Machine 4 Station Flat Bed Lathe
Product Description
The CK6150 CNC lathe ensures extremely high - precision processing. It can accurately machine various rotary surfaces such as outer circles, inner holes, conical surfaces and threads, meeting the strict requirements of part machining accuracy. Equipped with an advanced CNC system, this lathe enables automated processing. By programming, it can continuously and stably complete a series of machining operations, which significantly improves production efficiency and reduces labor intensity.
Standard Configuration:
1. GSK 980 TDC
2. Spindle Unit A2-8/through hole 82
3. 250mm manual Chuck
4. The main shaft gear box has 3 gears
5. 4-station tool holder
6. Bed guide width 400mm
Optional Configuration:
1. 6 station electric knife tower
2. 250mm hydraulic Chuck/hydraulic Chuck
3. System: STNTEC, Mitsubishi, Siemens, FANUC
4. Spindle through hole 82
5. 7.5 kw servo main motor
Product Specification
Product Display:
