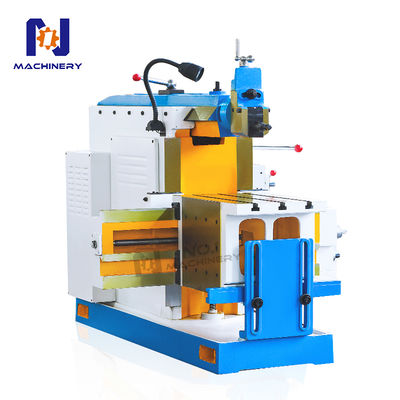

BC6063 Planing Machine Metal Fully Automatic Planer Hydraulic Shaper Machine
| MOQ: | 1 set |
| Price: | 6000USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
BC6063
Max.planing Length(mm）:
630
The Maximum Distance From The Bottom Of The Ram To The Work Surface:
385
Max.lateral Travel Distance Of Worktable:
660
Max.vertical Table Travel Distance:
360
Working Surface Size(mm):
630*400
Tool Travel(mm):
120
T-slot(mm):
18
Main Power(kw):
3
NW/GW（kg）:
3500
Dimensions（mm）:
2000*1300*1550
Highlight:
BC6063 Planing Machine
,Fully Automatic Planing Machine
,BC6063 hydraulic shaper machine
Product Description
Factory Direct BC6063 Metal Fully Automatic Planer Hydraulic Shaper Machine Price
The Shaper is a planer that performs linear reciprocating motion. The ram carries the planer. It is named because the tool holder at the front of the ram looks like a bull's head. The ram carries the planer in horizontal linear reciprocating motion. The tool holder can rotate an angle in the vertical plane and can be fed manually. The worktable carries the workpiece in intermittent horizontal or vertical feeding motion. It is often used to process planes, grooves and dovetail surfaces.
