Metal Horizontal Flat Bed CNC Machine Lathe With CE Certification CK6150
| MOQ: | 1 set |
| Price: | 8600USD |
| Standard Packaging: | Export standard wooden case or as customers' requirement |
| Delivery Period: | 15 days after getting the deposit. |
| Payment Method: | T/T |
| Supply Capacity: | 1000 sets/month |
Detail Information
Place of Origin
Shandong, China
Brand Name
Zaozhuang NO.1
Certification
CE,ISO
Model Number
CK6150
Document
Max. Swing Over Bed:
500mm
Max. Swing Over Cross Slide:
300mm
Max. Processing Length:
750-2000mm
Spindle Speed:
50-1700rpm
Spindle Bore:
Φ82
Spindle Motor:
7.5kw
Head Chuck Size:
250mm
Quill Taper:
MT5
Tool Post Type:
4-position Electric Turret
Highlight:
Horizontal cnc machine lathe
,Flat Bed cnc machine lathe
,CK6150 cnc lathe
Product Description

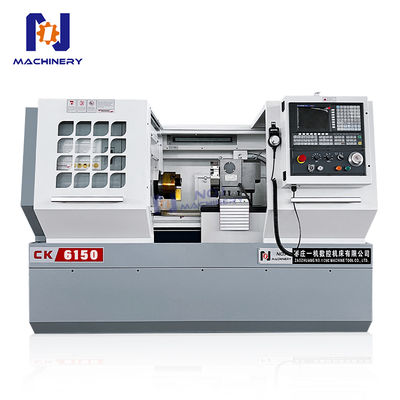

CK6150 Cnc Lathe Machine Metal Horizontal Flat Bed Cnc Machine Lathe With CE Certification
Product Description
The CK6150 CNC lathe ensures extremely high - precision processing. It can accurately machine various rotary surfaces such as outer circles, inner holes, conical surfaces and threads, meeting the strict requirements of part machining accuracy. Equipped with an advanced CNC system, this lathe enables automated processing. By programming, it can continuously and stably complete a series of machining operations, which significantly improves production efficiency and reduces labor intensity.
Standard Configuration:
1. GSK 980 TDC
2. Spindle Unit A2-8/through hole 82
3. 250mm manual Chuck
4. The main shaft gear box has 3 gears
5. 4-station tool holder
6. Bed guide width 400mm
Product Specification
Product Display:
